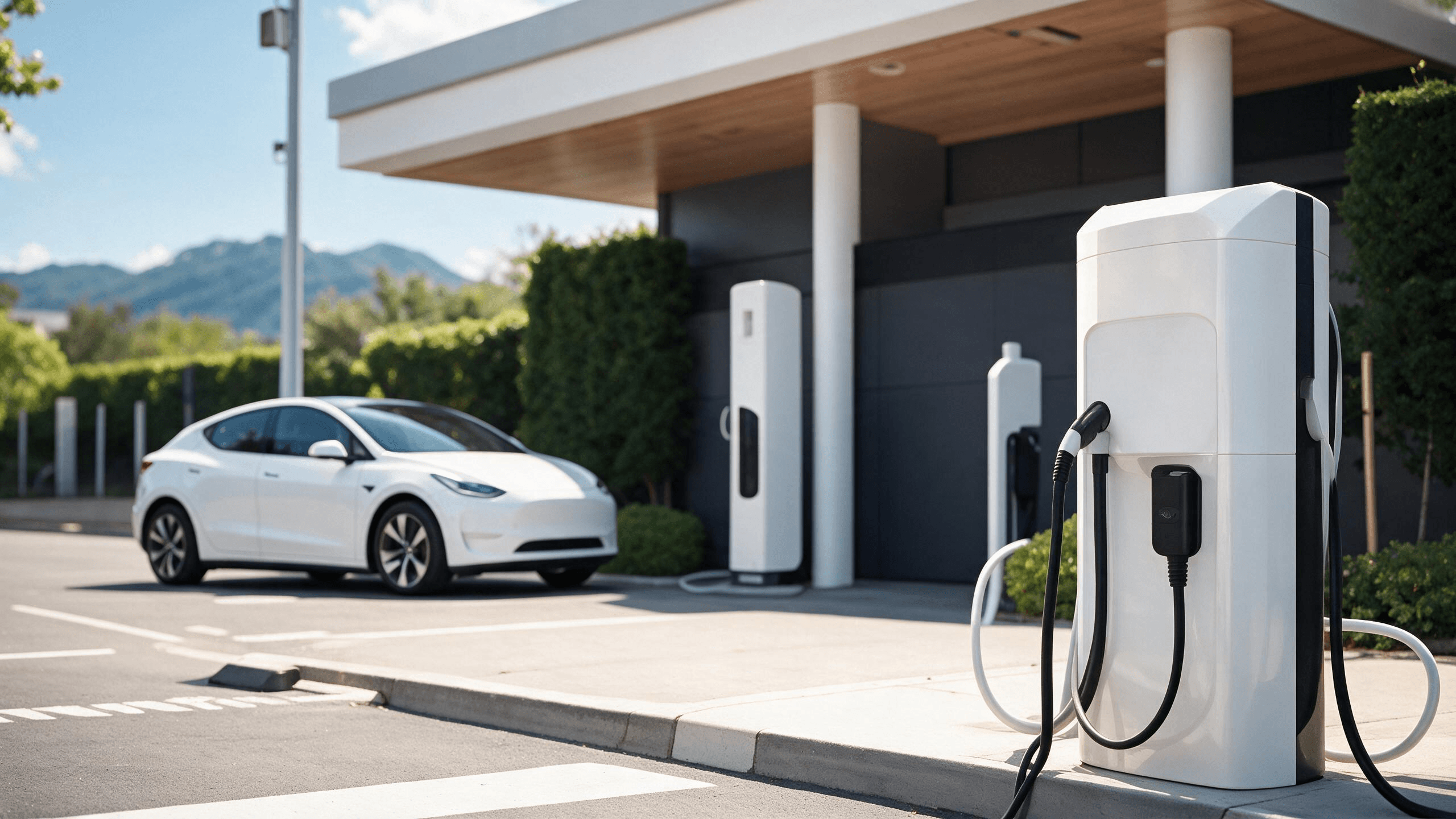

With the continuous growth of the energy vehicle (EV) industry and the accelerated construction of charging infrastructure, EV charging piles are evolving toward greater intelligence and connectivity. Serving as the “brain” of the charging pile system, the MCU handles critical tasks such as charging process control, device status monitoring, vehicle-to-pile communication, metering and billing, human-machine interaction (HMI), and safety protection. Its performance and reliability directly determine the operational efficiency and user experience of the charging pile.

The Role of MCUs in EV Charging Piles

During the charging process, the MCU must acquire and process system operational data in real time while orchestrating multi-module coordination across several key areas:

1. Charging Process Control: The MCU executes core control algorithms to monitor operating parameters, such as voltage, current, and temperature, in real time. Based on feedback from the vehicle's battery management system (BMS), it precisely regulates charging power to ensure a stable, safe, and efficient charging process.

2. Vehicle-to-Pile Communication and Networking: The MCU exchanges data with the vehicle's BMS via a CAN interface in real time. It also connects to backend management systems via Ethernet, 4G/GPRS, or other networking methods to enable device status monitoring, data telemetry, and remote management.

3. Human-Machine Interaction (HMI): The MCU drives displays, touchscreens, and indicator LEDs to provide users with charging status updates, operation guidance, and payment information, delivering an intuitive and convenient user experience.

4. Safety Protection: The MCU continuously monitors for abnormalities, such as over-voltage, over-current, under-voltage, leakage current, and over-temperature, and triggers protective countermeasures in response to secure both the charging equipment and the vehicle.

Applications of the MH2153A in AC Charging Piles

Megahunt MH2153A series MCU is tailored for AC charging pile applications, providing charging control, data acquisition, and peripheral communication capabilities.

-  High-Performance Real-Time Control for Charging Management: Powered by an Arm® Cortex®-M3 core operating at up to 216 MHz, the MH2153A integrates 1024 KB Flash and 96 KB SRAM. This provides the computational capacity required for data acquisition, status monitoring, and real-time control algorithm execution during charging.

-  Rich Communication Interfaces for Device Interconnectivity: The MH2153A integrates 2× UART, 2× SPI, 1× I²C, USB, and CAN interfaces, allowing it to interface with various peripherals and handle data exchange among internal functional modules. It also features an integrated hardware network controller with a fully hardwired TCP/IP protocol stack. Supporting 10/100M Ethernet MAC and PHY with an SPI clock rate of up to 80 MHz, it easily fulfills the Ethernet communication requirements of AC charging piles.

- Built-in Security Mechanisms for Data Integrity and Reliability: To meet the data security requirements of connected charging devices, the MH2153A embeds hardware cryptographic accelerators for DES, AES, SHA. The chip also includes a True Random Number Generator (TRNG) capable of generating 128-bit true random numbers in a single operation, alongside a CRC calculation unit for verifying data transmission and storage integrity.

With its high processing performance, comprehensive communication interfaces, and robust security mechanisms, the Megahunt MH2153A series MCU satisfies the core control requirements of AC charging piles. As EV adoption expands and smart charging networks evolve, Megahunt will continue to deliver high-performance, high-reliability solutions across charging infrastructure, smart terminals, and industrial control systems.
